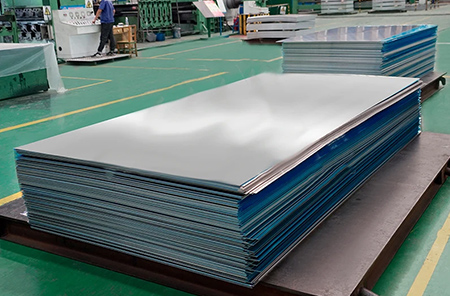

3004 H32 Aluminum Sheet
3004 aluminum plate belongs to the aluminum-manganese series of alloys. It is similar to alloy 3003, except that about 1% magnesium is added. It can be cold worked to produce a stronger but less ductile state, but cannot be heat treated.
3004 aluminum plate has excellent formability and good corrosion resistance. It is often used to manufacture beverage cans, lamp base materials, building curtain walls, household appliance casings, etc. Additionally, the tank can be made thinner thanks to the addition of 1% magnesium.
Hot selling products of 3004 aluminum plate
| Product | Thickness/in | Width*Length/in |
|---|---|---|
| 0.016(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.016 | 48x96 |
| 0.02(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.02 | 48x96 |
| 0.025(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.025 | 48x120 |
| 0.032(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.032 | 48x120 |
| 0.032(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.032 | 48x144 |
| 0.04(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.04 | 48x120 |
| 0.04(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.04 | 48x144 |
| 0.05(t) 3004 Aluminum sheet ASTM B209 60x120 | 0.05 | 60x120 |
| 0.05(t) 3004 Aluminum sheet ASTM B209 60x144 | 0.05 | 60x144 |
| 0.063(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.063 | 48x96 |
| 0.063(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.063 | 48x120 |
| 0.063(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.063 | 48x144 |
| 0.08(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.08 | 48x96 |
| 0.08(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.08 | 48x144 |
| 0.09(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.09 | 48x96 |
| 0.1(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.1 | 48x120 |
| 0.1(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.1 | 48x144 |
| 0.125(t) 1/8(t) 3004 Aluminum sheet ASTM B209 48x96 | 0.125 | 48x96 |
| 0.125(t) 1/8(t) 3004 Aluminum sheet ASTM B209 48x120 | 0.125 | 48x120 |
| 0.125(t) 1/8(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.125 | 48x144 |
| 0.125(t) 1/8(t) 3004 Aluminum sheet ASTM B209 36x120 | 0.125 | 36x120 |
| 0.125(t) 1/8(t) 3004 Aluminum sheet ASTM B209 60x144 | 0.125 | 60x144 |
| 0.19(t) 3004 Aluminum plate ASTM B209 48x144 | 0.19 | 48x144 |
| 0.25(t) 1/4(t) 3004 Aluminum plate ASTM B209 48x120 | 0.25 | 48x120 |
| 0.25(t) 1/4(t) 3004 Aluminum plate ASTM B209 48x144 | 0.25 | 48x144 |
| 0.32(t) 3004 Aluminum plate ASTM B209 48x120 | 0.32 | 48x120 |
| 0.32(t) 3004 Aluminum plate ASTM B209 48x144 | 0.32 | 48x144 |
| 0.375(t) 3/4(t) 3004 Aluminum plate ASTM B209 48x120 | 0.375 | 48x120 |
| 0.04(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.04 | 48x144 |
| 0.09(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.09 | 48x144 |
| 0.05(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.05 | 48x144 |
| 0.63(t) 3004 Aluminum sheet ASTM B209 48x144 | 0.63 | 48x144 |
Physical properties of 3004 H32 aluminum plate
| Specified thickness mm | Tensile strength Rm/Mpa | Yield strength Rp0.2/Mpa | Elongation min.% | Bend radiusa | Hardness HBWa | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| over | up to | min. | max. | min. | max. | A50 mm | A | 180° | 90° | |
| 0.2 | 0.5 | 190 | 240 | 145 | - | 4 | - | 1.0t | 0t | 58 |
| 0.5 | 1.5 | 190 | 240 | 145 | - | 5 | - | 1.0t | 0.5t | 58 |
| 1.5 | 3 | 190 | 240 | 145 | - | 6 | - | 1.5t | 1.0t | 58 |
| 3 | 6 | 190 | 240 | 145 | - | 7 | - | - | 1.5t | 58 |
Mechanical properties of 3004 H32 aluminum sheet
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 172 MPa | 25000 psi |
| Yield strength | 145 MPa | 21000 psi |
| Elongation at break (@thickness 1.59 mm/0.0625 inch) | 10% | 10% |
| Elastic modulus | 68.9 GPa | 10000 ksi |
| Shear modulus | 25 GPa | 3630 ksi |
| Poisson’s ratio | 0.35 | 0.35 |
| Hardness, Brinell | 52 | 52 |
| Hardness, Knoop | 67 | 67 |
Chemical composition of EN-AW 3004 H32 aluminum sheet
| Element | Composition |
|---|---|
| Al | 95.5 - 98.2 % |
| Cu | 0-0.25 % |
| Fe | 0-0.70 % |
| Mg | 0.80 - 1.3 % |
| Mn | 1.0 - 1.5 % |
| Si | 0-0.30 % |
| Zn | 0-0.25 % |
| Other, each | 0-0.05 % |
| Other, total | 0-0.15 % |
Characteristics of 3004 aluminum sheet
- Good formability
- Excellent corrosion resistance
- Good weldability
- Good anodizing properties
Application of A93004 aluminum sheet plate
Food packaging
Because 3004 aluminum sheets have good corrosion resistance and formability, they are often used to manufacture packaging containers such as food cans and beverage cans.
Architecture
3004 aluminum panels are commonly used in building exterior wall panels, roof panels, ceilings and other components. Its corrosion resistance and decorative properties make it a popular building material.
Chemical container
Because 3004 aluminum plates have good corrosion resistance, they are often used to manufacture chemical containers, storage tanks, etc., and are widely used in the chemical industry.
Household appliances
Since the environment at the bottom of refrigerators and vertical air conditioners is prone to moisture, 3004 aluminum plates are often used for their bottom panels.
