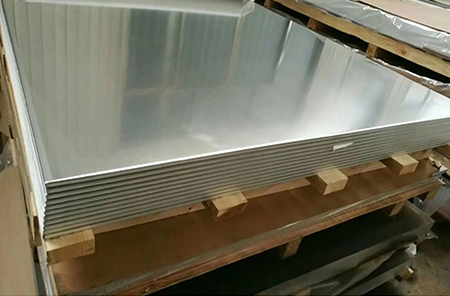

7075 T76 T7651 Aluminum Sheet

Tensile strength: ≥490 MPa / 71100 psi

Yield strength: ≥414 Mpa / 60000 psi

Specs: AMS-QQ-A-250/24

7075 aluminum boasts high mechanical performance and superior resistance to stress corrosion cracking.

It is employed in high-stress structural components, including aircraft parts, gears and shafts, fuse components, instrument shafts and gears, missile parts, regulating valve components, worm gears, keys, and various other commercial aircraft, aerospace, and defense equipment and components.

Stock sizes of 7075 aluminum sheet plate

Thickness(mm)	Width(mm)	Length(mm)
0.8	1500	3000
1	1250	2500
1	1500	3000
1.2	1500	3000
1.5	1250	2500
1.5	1500	3000
2	1500	3000
2.5	1500	3000
3	1250	2500
3	1500	3000
4	1500	3000
5	1250	2500
5	1500	3000
8	1500	3000
180	2000	4000
250	1500	3000
10	1500	3000
10	2000	4000
12	1500	3000
12	2000	4000
14	1500	3000
14	2000	4000
15	1500	3000
15	2000	4000
16	1500	3000
16	2000	4000
18	1500	3000
18	2000	4000
20	1500	3000
20	1500	565
22	1500	3000
22	2000	4000
25	1500	3000
25	2000	4000
28	2000	4000
30	1500	3000
32	2000	4000
35	1500	3000
35	2000	4000
40	1500	3000
45	2000	4000
50	1500	3000
50	2000	4000
55	1500	3000
55	2000	4000
60	1500	3000
60	2000	4000
65	1500	3000
65	2000	4000
70	1500	3000
70	2000	4000
75	1500	3000
75	2000	4000
80	1500	3000
85	1500	3000
90	1500	3000
95	1500	3000
100	1500	3000
130	2000	4000
140	1500	3000
150	1500	3000
160	1500	3000
170	1500	3000
200	1500	3000

Material properties of aluminum 7075 plate and sheet

7075 T7651 Plate
Thickness	Tensile Strength	Yield Strength	Elongation
12.7 - 25.4 mm	≥490 MPa	≥414 Mpa	≥6.0 %
0.500 - 1.00 in	≥71100 psi	≥60000 psi	≥6.0 %
6.35 - 12.7 mm	≥496 MPa	≥421 Mpa	≥8.0 %
0.250 - 0.499 in	≥71900 psi	≥61100 psi	≥8.0 %

7075 T76 Sheet
Tensile Strength	Yield Strength	Elongation
≥503 MPa	≥427 MPa	≥8.0 %
≥73000 psi	≥61900 psi	≥8.0 %

The chemical composition of 7075 aluminum sheets

Element	Composition %
Manganese (Mn)	0.3
Silicon (Si)	0.4
Chromium (Cr)	0.18-0.3
Copper (Cu)	1.2-2
Iron (Fe)	0.5
Zinc (Zn)	5.1-6.1
Aluminum (Al)	Remainder
Magnesium (Mg)	2.1-2.9
Titanium (Ti)	0.2
Other Each/Total	0.005/0.15
